- Mains input via CEE connector – no wallplug adapter
- 10 VA toroidal transformer
- Selectable RCA and XLR inputs
- Internal “PRE-GAIN“ (Range: -18 … +18 dB)
- 1“ solid aluminum volume control and balance control
- “Mono“ Mode and “(Left Channel) Phase“ switchable
- True balanced amplifier with 4 power stages
- Amps made with Texas Instruments “OPA 551“
- > 20 VRMS into 600 Ohm (for high impedance headphones)
- > 2700 mW into 100 Ohm (for low impedance headphones)
- 1 headphone output via ¼“ jacks
- 1 headphone output via 4-pin XLR
- Overall dimensions: 6.6 x 1.85 x 7.25in (WxHxD)
- Front panel: 6.6 x 1.85in(WxH)
Same as G105 - but for those who value the advantages of Balanced Headphones
SCOPE OF DELIVERY

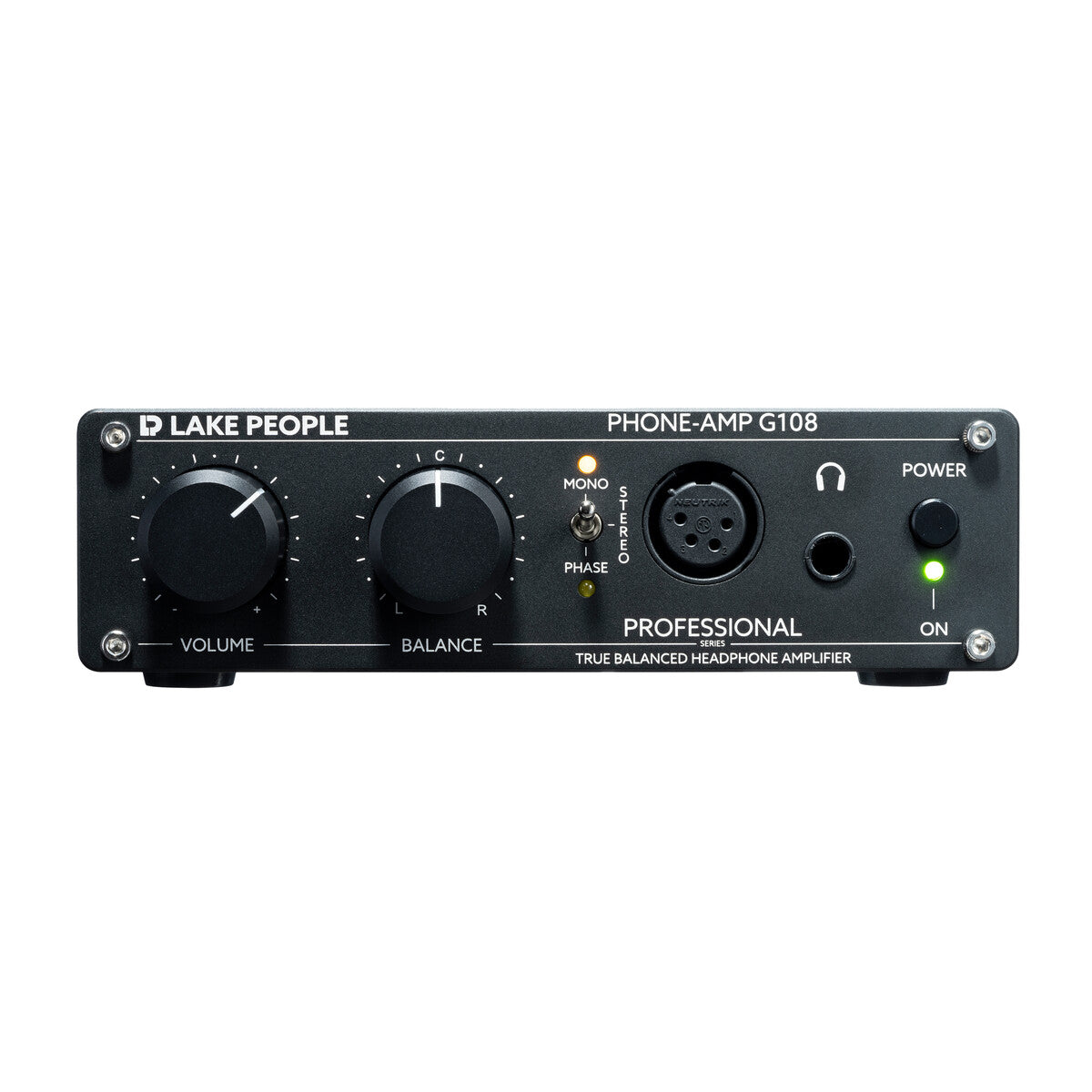

- 1x Lake People G108
- 1x Power Chord
- 1x Manual
TECHNICAL DATA
| Item number: | 1008324 |
| dimensions | 168 x 49 x 145 mm (BxHxT) |
| input sensitivity | + 6 dBu |
| input impedance | 10 kOhms |
| housing | Desktop |
| headphone Out | 1 (1/4" jack, unbalanced), 1 (4-pin XLR, balanced) |
| Line I/O | 2 / 0 (XLR) |
| max. output level | 520 mW (600 Ohm) / 1050 mW (200 Ohm) / 1100 mW (100 Ohm) / 1200 mW (50 Ohm) / 500 mW (16 Ohm) |
| signal-to-noise ratio (SNR) | > 122 dBA |
| power supply | Internal 230 V / 115 V AC |
| THD+N (@ -1 dBFs) | < 0,001 % |
| frequency range | 2 Hz - 150 kHz (-3 dB) |
| crosstalk | < 70 dB |
