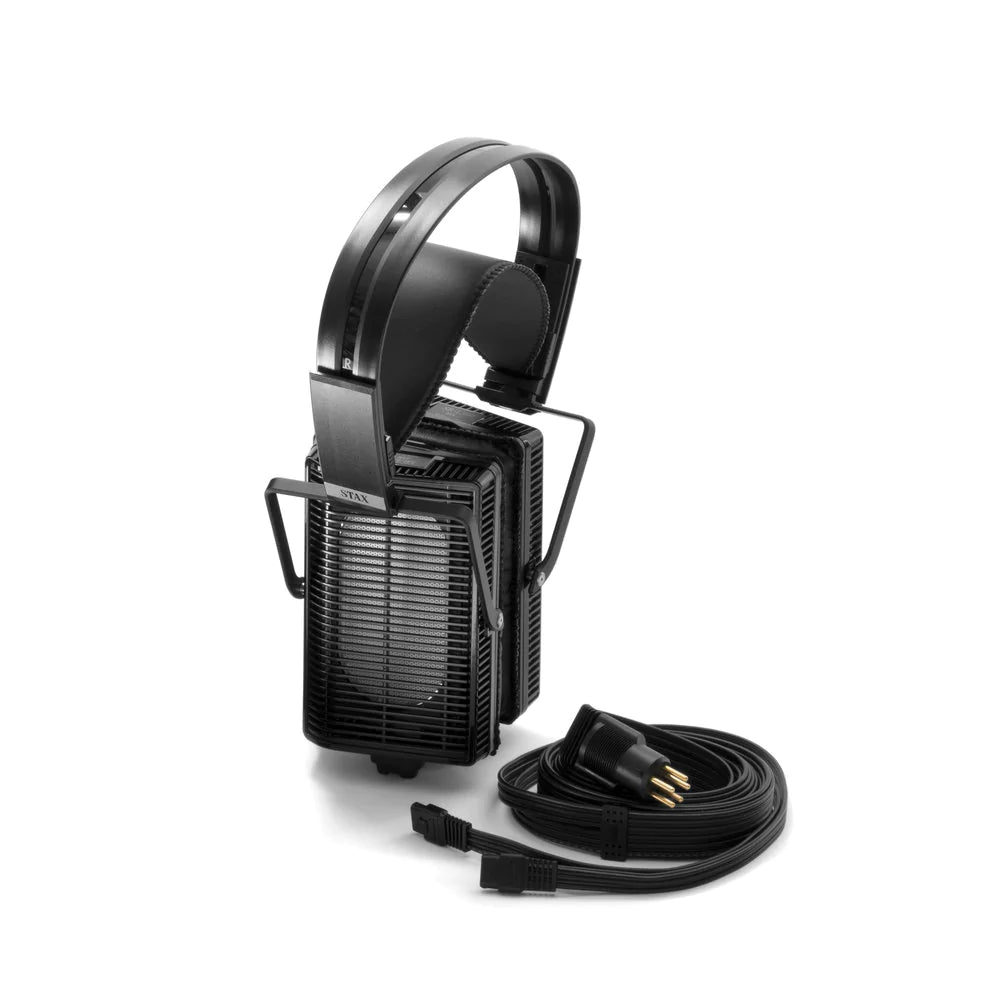

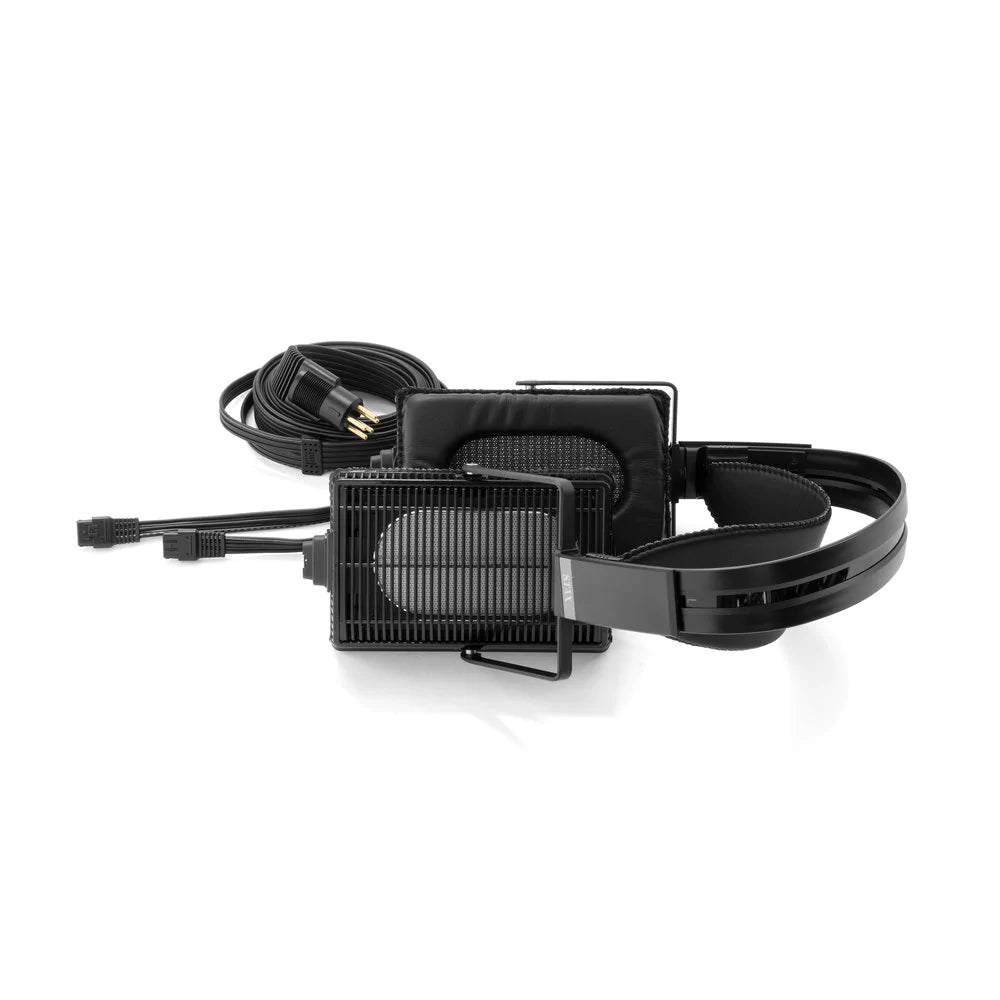

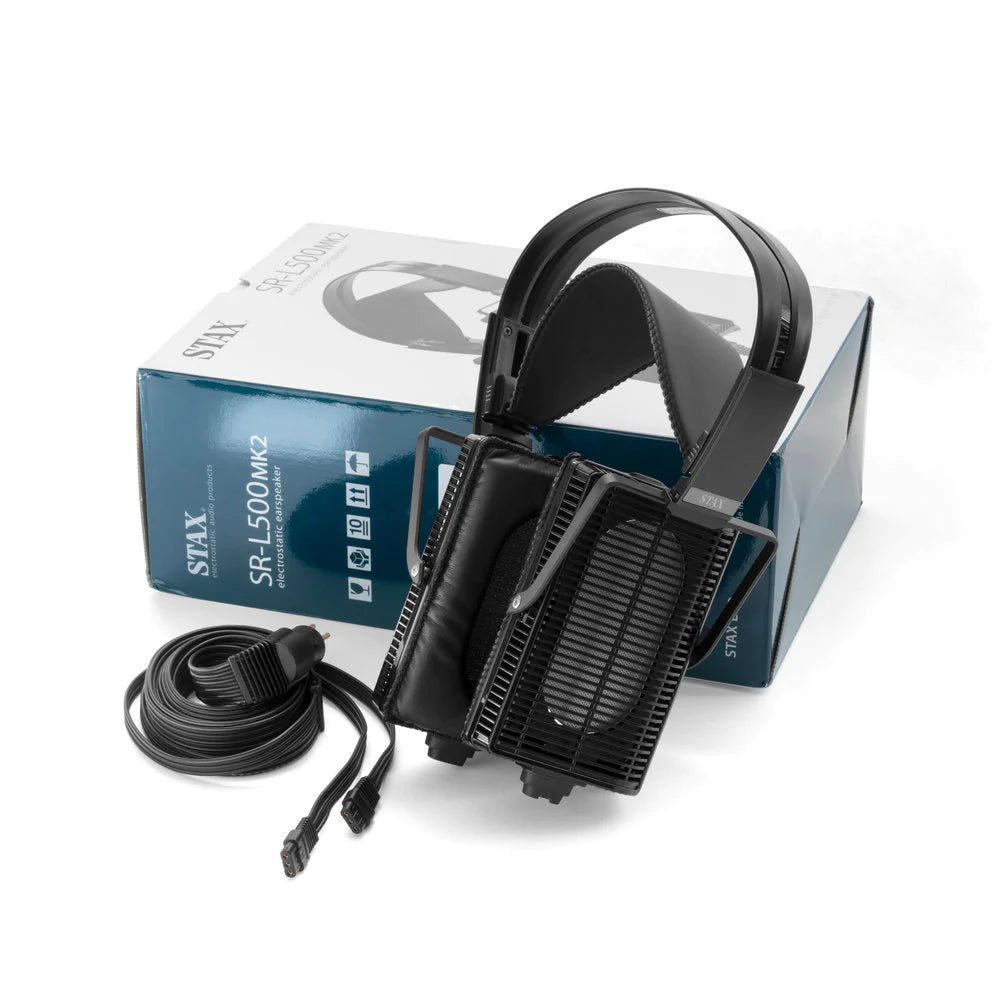

STAX - SR-L500 MK2
The first SR-Lambda series was introduced 36 years ago and it has further developed into a new-generation SR-Lambda with its newly designed enclosure - the new SR-L500 advanced Lambda series Earspeaker.
TOP QUALITY SOUND ELEMENT
Hand selected thin-film diaphragm as well as tough stainless fixed electrodes has been employed for the SR-L500. Thus, rich deep bass response, delicate high frequency and soothing mid-range has been achieved in a balanced manner.
10-CLICK TYPE HEADBAND ASSEMBLY
The headband (ARC) assembly of the SR-L500 is equipped with 10-click slider mechanism for head pad height adjustment adopted from SR-009 and SR-507. Once adjusted, the slider always maintains its optimal position to make readjustment unnecessary. This enables you to enjoy hours of pleasant music listening with utmost comfort.
NEW LOW CAPACITANCE HiFC WIDE CABLE
High performance pure copper HiFC™ developed by Hitachi employs the core wires. HiFC has various advantages, including similar sonic characteristics as used in SR-009 and SR-L500 6N high purity 99.99999% copper wires. The entire cable are then arranged in a flat, wide format configuration to lower the capacitance between each wires and finished with the most suitable structure to drive the earspeaker.
NEW HIGH QUALITY SYNTHETIC LEATHER EARPADS:
New earpad design is carefully hand crafted with high quality synthetic leather for utmost comfort for hours of music enjoyment as well as sound performance.
SR-L500 SPECIFICATIONS
- Type: Push-Pull Open Back Oval Electrostatic Earspeaker Headphone
- Frequency Response: 7 - 41,000Hz
- Electrostatic Capacitance: 110pF (including cable)
- Impedance: 145k Ω (including cable, at 10kHz)
- Sound Pressure Sensitivity: 101dB / 100V r.m.s. 1 kHz
- Maximum Sound Pressure: 118dB / 400Hz
- Bias Voltage: 580V DC
- Left & Right Identification: "L" and "R" indicated on the arc assembly Left channel cable is marked with a solid line. Right channel is marked with a dotted line.
- Ear Pads: High quality synthetic leather
- Cable: HiFC parallel 6-strand, low-capacity special wide copper cable, 2.5m full length
- Weight: 0.75lb without cable / 1lb with cable
Specifications and appearance are subject to change for improvement without notice.

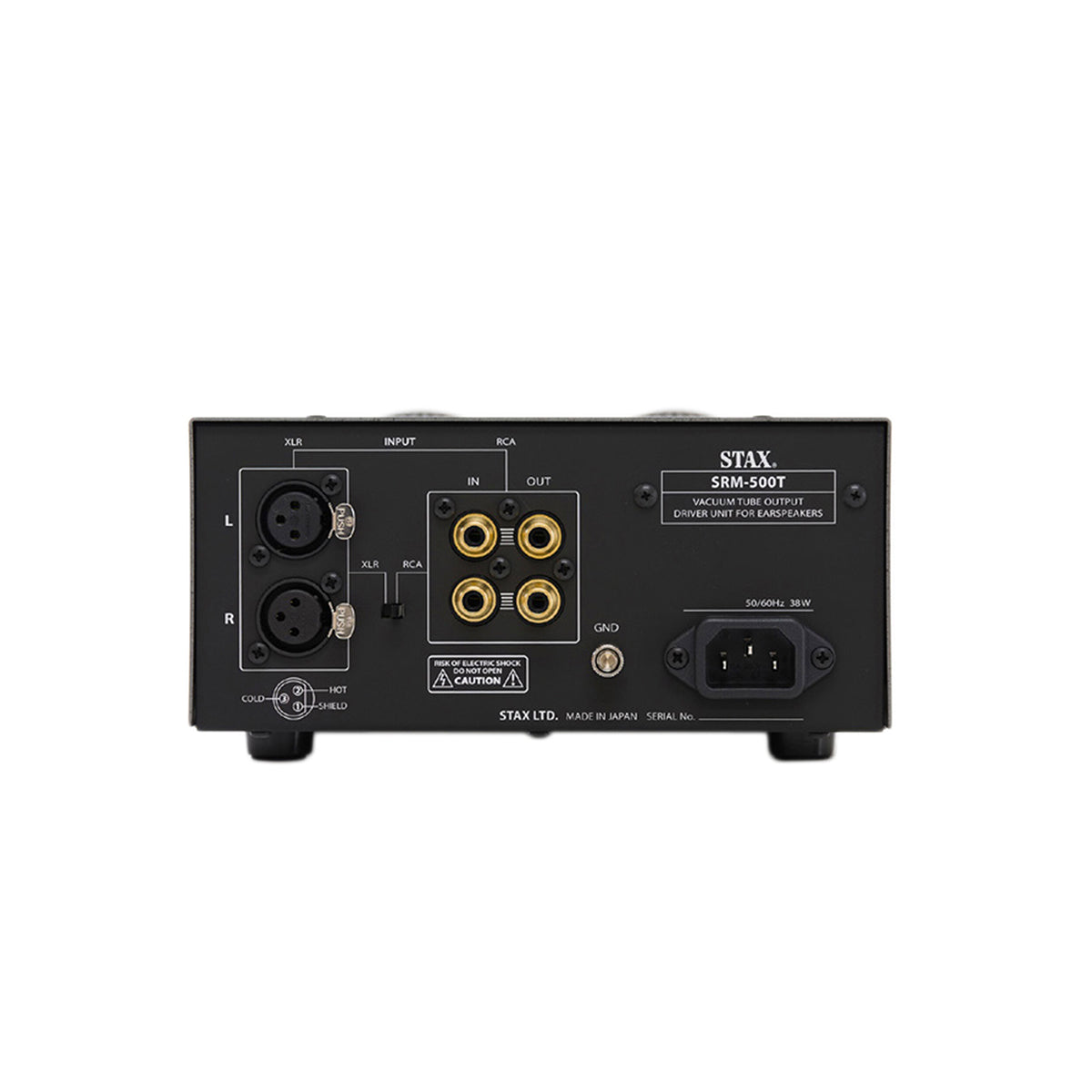

STAX - SRM-500T
Stax introduces a new model SRM-500T to replace its successor of SRM-006tS. The SRM-500T utilizes a pair of 6FQ7/6CG7 vacuum tubes as the output, driven by custom-made low noise dual FET. Stax pride itself in offering a great value electrostatic driver at the best possible performance.
The newly designed power transformer enables power efficiency. As a result, it achieves an improved sound quality than the conventional vacuum tube output driver unit found in SRM-006tS.
SRM-500T Specifications
- Type: FET input + vacuum tube output hybrid DC amplification driver unit
- Vacuum tube: 6FQ7/6CG7
- Frequency response: DC - 90kHz (with one SR-L500 MK2)
- Gain: 60dB
- Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
- Input impedance: 50kΩ (RCA), 50kΩx 2 (XLR)
- Maximum output voltage: 300Vrms (1kHz)
- Bias voltage: DC 580V
- Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)
- Input terminal: RCA x 1, XLR x 1(mutual exclusion input)
- Output: RCA parallel output
- Power consumption: 38W
- Dimension: 195 (W) x 102 (H) x 376 (D) mm (maximum protruding portion included)
- Weight: 3.4kg
