The SRM-D50 is a high-performance electrostatic driver and Digital-to-Analog Converter, inspired by the battery-powered SRM-D10. With an elegant all-in-one design, the D50 creates a simple solution for any music lovers to experience the legendary sound of Stax earspeakers.
Features:
- Supports various digital inputs such as USB, optical, and coaxial digital input
- Built-in DAC supports high resolution up to PCM 32/384 KHz or DSD 5.6
- VU meter displays input strength
- 4 mm thick nonmagnetic aluminum cover.
- R core power transformer with less leakage flux
Specification:
Frequency response: 20Hz - 40kHz (+/-3dB)
Rated Input Level: 130mV r.m.s
Maximum Input Level: 30V/ RCA, at minimum volume
Maximum Output Voltage: 400V RMS (1130Vp-p)
Gain: 59 dB
Harmonic distortion: 0.025% or less/1kHz-10kHz /When use with SR-L series
Input Impedance: 20kΩ (RCA)
Bias Voltage: DC 580V

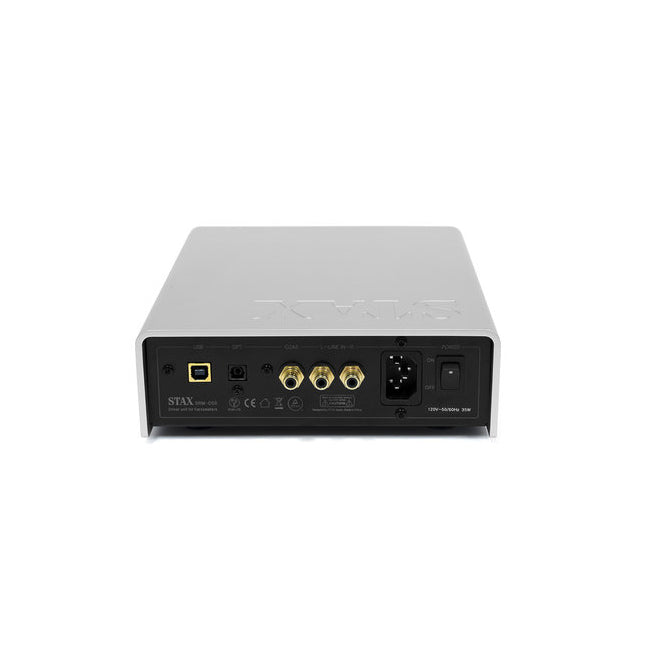

Digital Input: USB (type B) ×1, TOSLINK Optical ×1, COAX RCA ×1
Analog inputRCA ×1
Mains voltage: AC 110V / 60Hz
Power Consumption: 35W
Operating temperature: 0 to 35 degrees (Celsius) (less than 90% humidity, non condensing)
Dimension: 7.55(W) x 2.63(H) x 10.55(D) inches, 192(W)×67(H)×268(D) mm
Weight: 9.9 lbs / 4.5 kg
