MoonDrop DAWN PRO Portable USB DAC/Amp Headphone Amplifier - High Resolution Audio for iPhone, Android, PC - Perfect for Travel, Gaming & Music Lovers (Open Box)

Workable Well With Computers, Smartphones, and Laptops Offers Both Lossless and Master Audio

DAWN PRO is compatible with most available computers, smartphones, and laptops, and supports decoding PCM from 16Bit/44.1kHz to 32Bit/384kHz, even for 1 Bit with DSD512.
*NOTE: The earphones, smartphone, and PC in the picture are NOT included.

Dual Cirrus Logic flagship decoding chips: Three independent power chips

DAWN PRO adopts dual flagship decoding amp chips CS43131 from Cirrus Logic, and uses HiFi-class USB digital interface chip, dual independent crystal oscillators, and three independent power supply chips for supplying each IC separately, forming a set of high-efficiency and high-performance HiFi audio circuit architecture, which meets enough thrust, ultra-low distortion, ultra-low noise and rich details in audio experience with low power consumption.

100-level Smooth DAC Volume Control

Almost lossless 100-level volume control, which separates the device volume control from the smartphone, not only presents better performance but also brings a smooth control experience.

131dB Dynamic Range
Larger dynamic, ultra-low background noise

The Distortion is as low as 0.0001% and the SNR exceeds 116dB
Fully Restore HiFi Sound Quality

4Vrms/120mW Lossless Output Power
It Works Well With Various Headphones

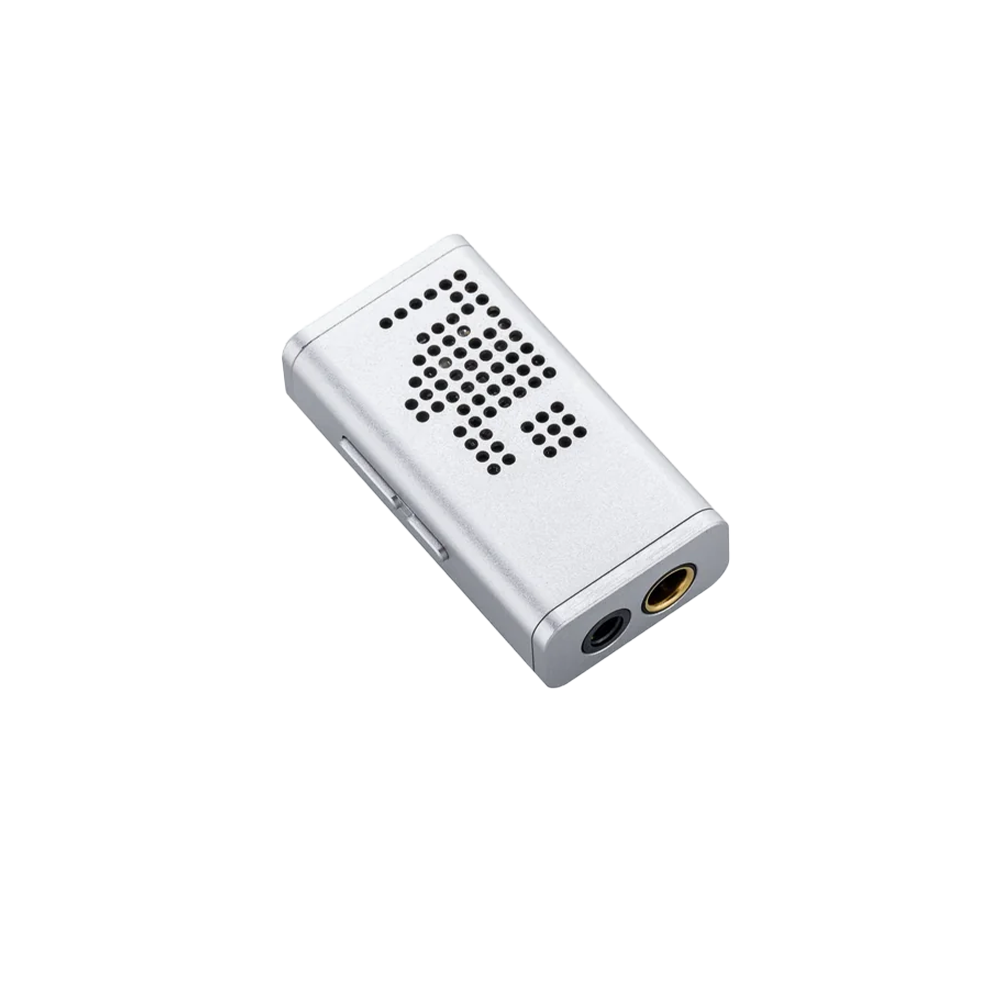

3.5mm Single-ended

• The 3.5mm single-ended port ensures a wider compatibility

4.4mm Balanced Outputs

• The 4.4mm balanced port provides twice the performance of single-ended output

Aluminum Alloy Housing Diversion and Heat Dissipation Design

The housing of DAWN PRO combines aviation aluminum alloy, CNC, and mold forming, and the surface is processed by the anodized, which has excellent texture and durability. In the design of the heat dissipation structure, DAWN PRO has utilized the design idea of desktop HiFi devices, and the heat dissipation vents are set above the chips which generate more heat, improving the heat dissipation efficiency.

IN THE BOX

• DAWN PRO * 1
• Type-C to Type-C adapter * 1
• Type-A to Type-C adapter * 1

SPECIFICATIONS

• Model: DAWN PRO High-performance DAC/AMP
• Weight: 13g
• Size: 42mm * 22.45mm * 12.39mm
• Headphone Connector: 3.5 Single-ended, 4.4mm Balanced
• Frequency Response: 5Hz - 82kHz (±1dB)
• Background Noise:
• 4.4mm: 1.3μV (AES17 20kHz)
• 3.5mm: 1.5μV (AES17 20kHz)
• SNR:
• 4.4mm: 131dB (A-wt)
• 3.5mm: 123dB (A-wt)
• Dynamic Range: 4 4mm: 132dB (A-wt)
• Line Output:
• 4.4mm: 4Vrms
• 3.5mm: 2Vrms
• THD+N: 0.00014% (AES17 20kHz, no load)
