Features BLX2 with PG58 and CVL Lavalier Microphone
Environments: Club, Live Performance, Place of worship, Rehearsal Space
Industries: Education, House of Worship
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.
Frequency Range and Transmitter Output Level
| Band | Range | Output Power |
|---|
| H9 | 512 to 542 MHz | 10 mW |
| h20 | 542 to 572 MHz | 10 mW |
| h21 | 572 to 596 MHz | 10 mW |
| J11 | 596 to 616 MHz | 10 mW |
Includes
- 1 - BLX88 dual-channel receiver
- 1 - BLX1 bodypack transmitter
- 1 - BLX2/PG58 handheld transmitter
- 1 - CVL lavalier microphone
- 1 - PS24 Power Supply
- 1 - WA371 Swivel Adapter
- 1 - 31B1856 Thread Adapter
- 1 - microphone clip
- 1 - lavalier clip
- 1 - lavalier windscreen
- user guide

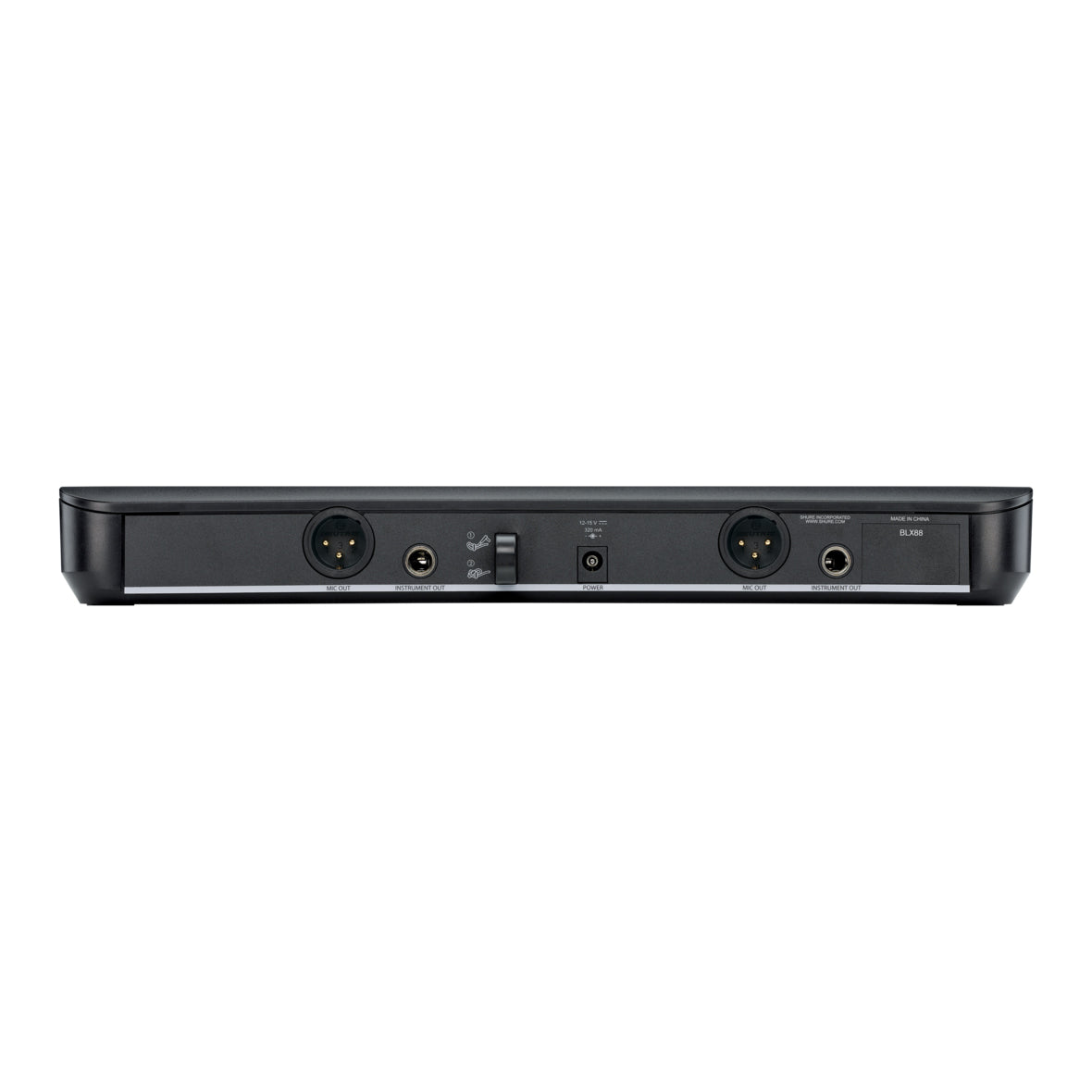

BLX88 Specs
Output Impedance| XLR connector | 200 Ω |
| 6.35 mm (1/4") connector | 50 Ω |
Audio Output LevelRef. ±33 kHz deviation with 1 kHz tone
| XLR connector | –27 dBV (into 100 kΩ load) |
| 6.35 mm (1/4") connector | –13 dBV (into 100 kΩ load) |
RF Sensitivity-105 dBm for 12 dB SINAD, typical
Image Rejection>50 dB, typical
Dimensions1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight15.1 oz. (429 g)
HousingMolded ABS
Power Requirements12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

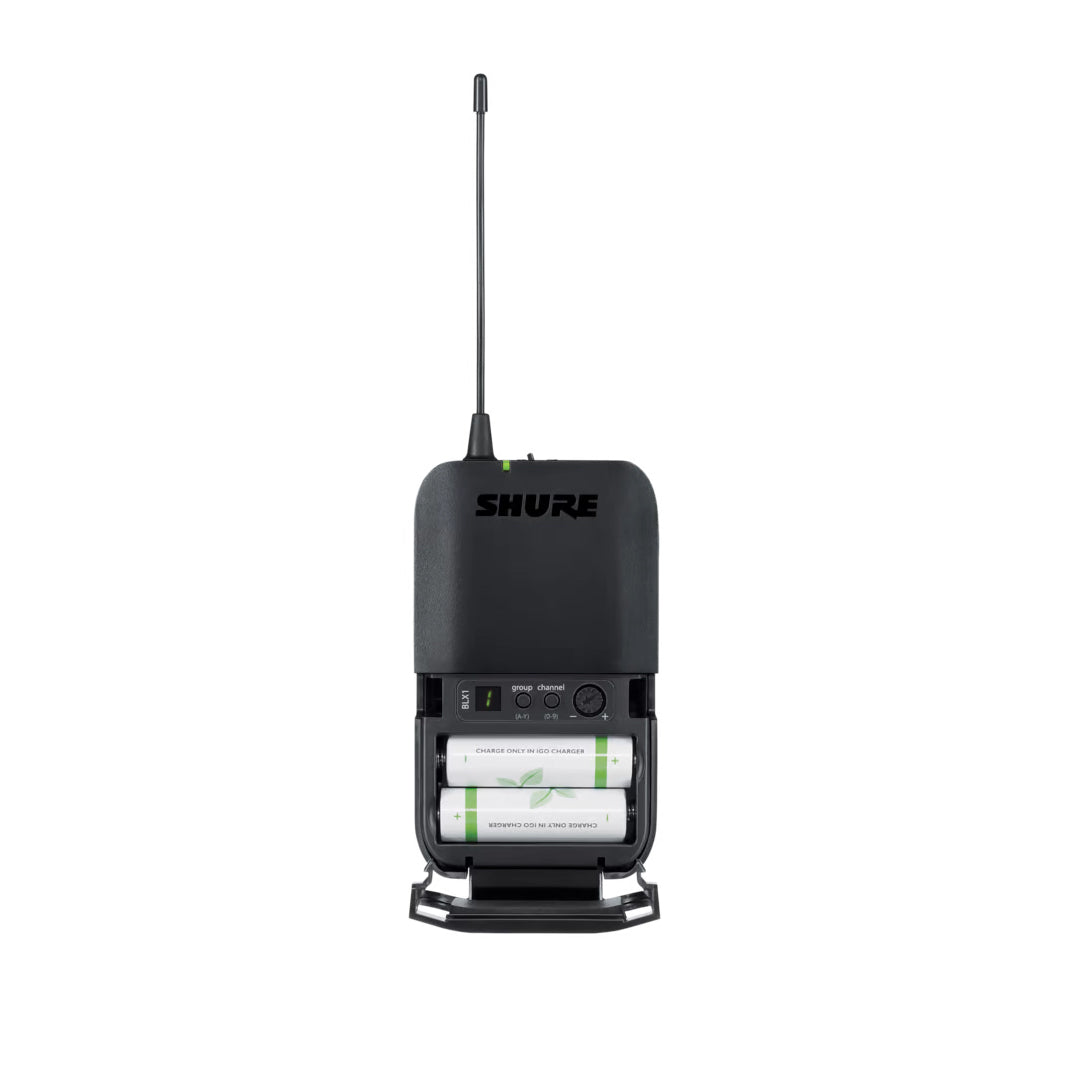

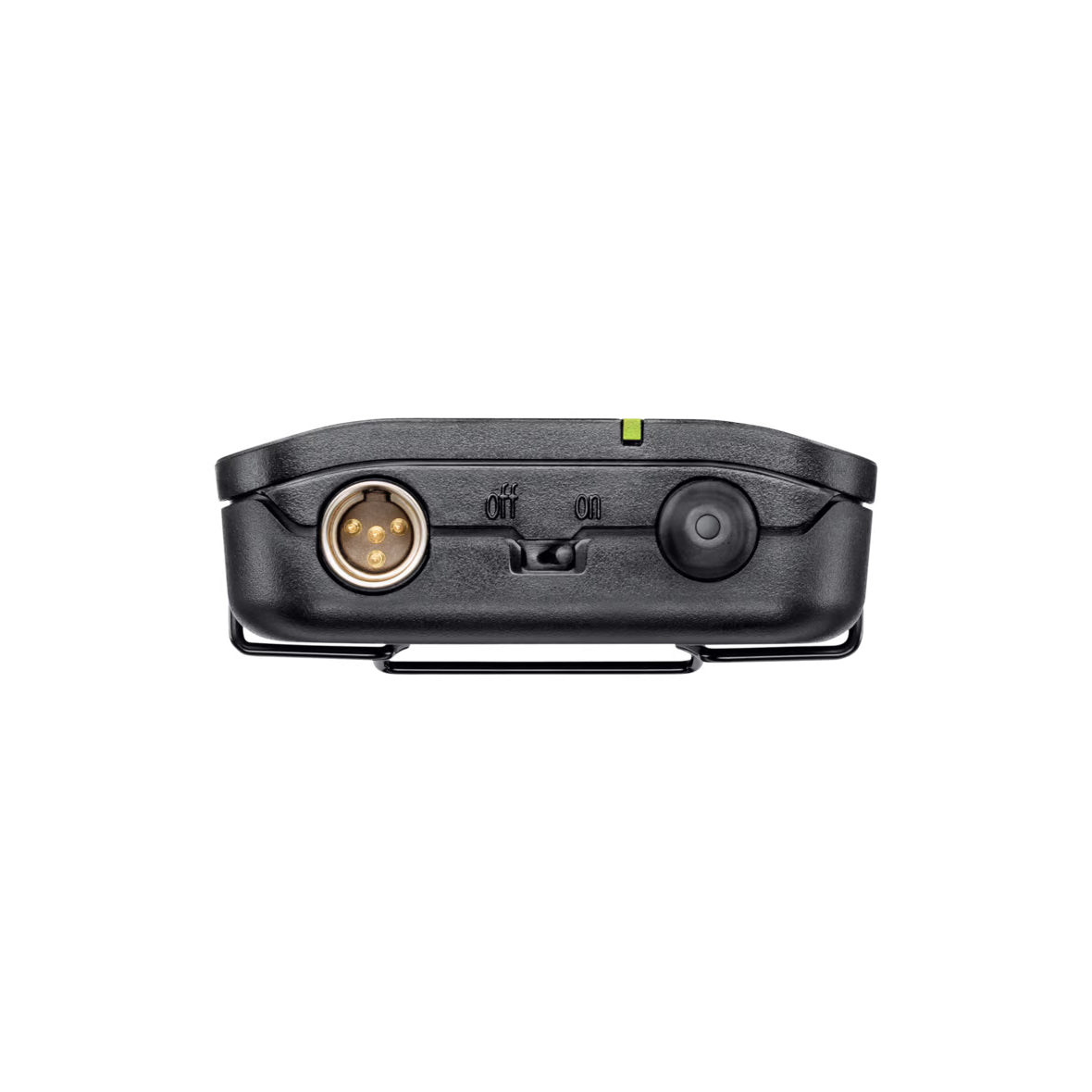

BLX1 Specs
Audio Input Level| max | -16 dBV maximum |
| min (0 dB) | +10 dBV maximum |
Gain Adjustment Range26 dB
Input Impedance1 MΩ
RF Transmitter Output10 mW, typical
varies by region
Dimensions4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight2.6 oz. (75 g), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)

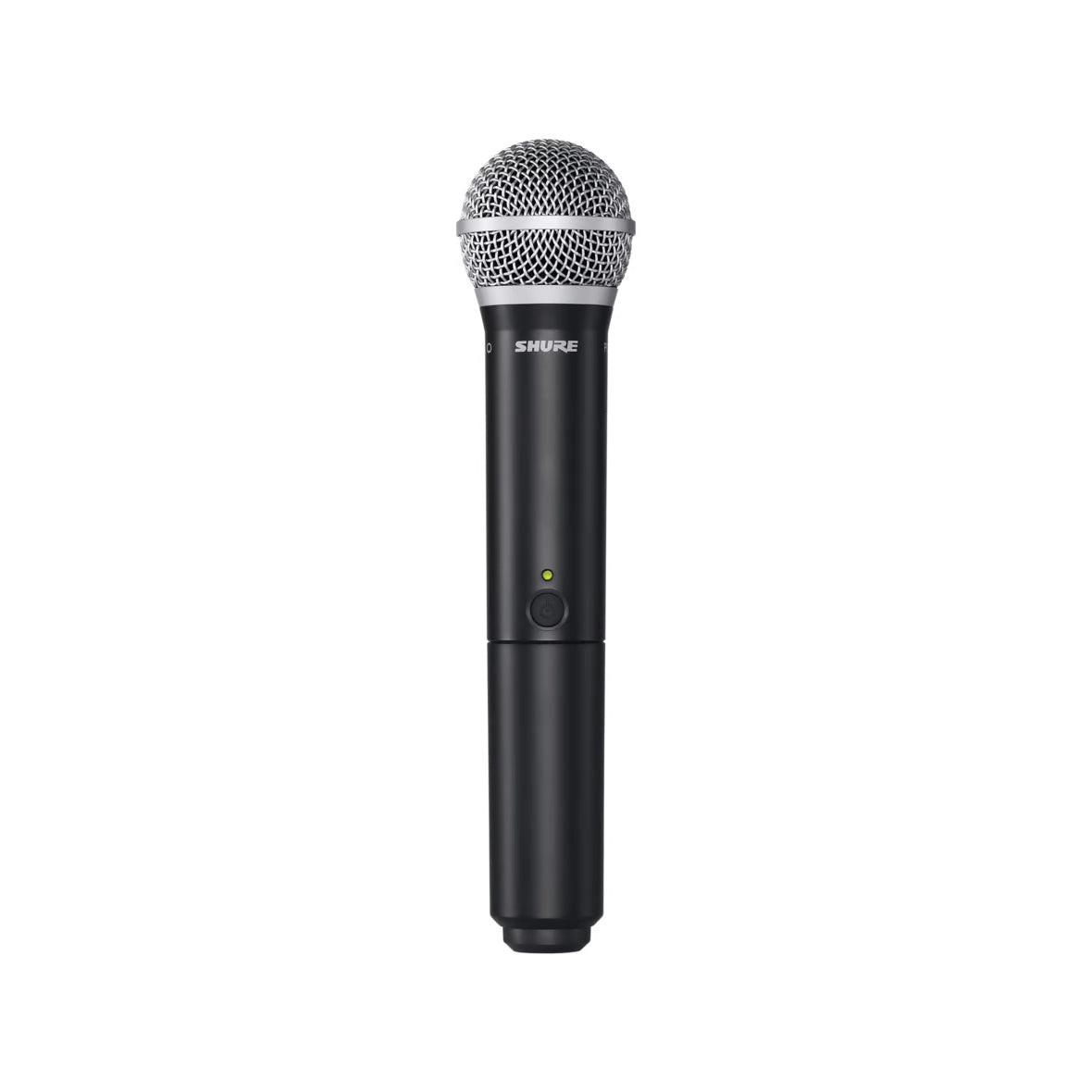

BLX2 Specs
Audio Input Level| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
Gain Adjustment Range10 dB
RF Transmitter Output10 mW, typical
varies by region
Dimensions8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight7.7 oz. (218 g) without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
CVL Specs
TypeElectret Condenser
Frequency Response60 Hz to 12,000 Hz
Polar PatternUnidirectional (Cardioid)
Output Impedance@ 1 kHz
600 Ω
Audio Output Level-43.5 dBV/Pa
Signal-To-Noise Ratio [1]@ 1 kHz
72 dB
Maximum SPL [1]1000 Ω load, @ 3%THD
139.0 dB
Dynamic Range [1]@ 1 kHz, 1000 Ω load
117.0 dB
Equivalent Output Noise [1]typical, A-Weighted
22 dB
Power Requirements+5 V DC (nominal), 10 V maximum (DC bias)
PolarityPositive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable1.3 m (50 in.)
ConnectorTA4F
Net Weight25 g (0.88 oz.)
[1] Measurements taken using RK100PK preamp set @ 0 dB using 8k bias resistor.
*All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.
